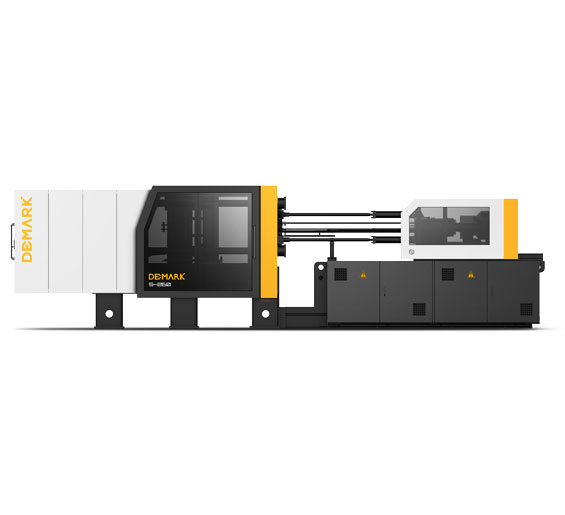

    • S Series PET Preform Making Machine

    S Series PET Preform Making Machine

    1. ♦ Low investment Cycle: 14S/14g/32cav.
    2. ♦ Return back of your investment within a short of time
    Send inquiry
    Click to download PDF
    Description Technical parameters Video
    1. 1  Barrier design screw improved the plasticization effect.
    2. 2  Screw with chrome and the L:D ratio reach 25:1.
    3. 3  Equipped with low speed but high torsion hydraulic motor to meet the requirements for PET preform production.
    4. 4  The differential injection cylinder decrease the injection resistance and improve the injection accuracy.
    5. 5  Back pressure could adjust on the control panel.

    Item Unit S260 / 1500 S260 / 2000 S300 / 2000 S300 / 2500
    Screw L/D Ration L/D 25 25 25 25
    Screw Diameter mm 75 80 80 90
    Injection pressure kgf/cm² 1280 1125 1400 1106
    Injection volume cm³ 1414 1608 1810 2290
    Shot weight (PET) g 1654 1882 2117 2680
    Shot weight oz 58 66 75 95
    Clamping force T 260 260 300 300
    Clamping Stroke mm 540 540 585 585
    Max/Min Thickness of mold mm 200 - 580 200 - 580 300 - 720 300 - 720
    Space Between Tie Bars (W*H) mm 570 * 570 570 * 570 660 * 760 660 * 760
    Ejector Stroke mm 150 150 180 180
    Ejector Force T 8 8 20 20
    NO.of Ejector Pins pcs 5 5 5 5
    Max system pressure kg/cm² 160 160 160 160
    Motor Power kw 36 36 44 44
    Heater Input Capacity kw 32 36 36 44
    Machine Size (L*W*H) cm 700 * 200 * 220 7000 * 160 * 220 800 * 200 * 220 800 * 210 * 220
    Machine Weight T 12 12 14 14
    Notice: Demark reserve the rights to make any product improvement or specification change without prior notice.


    Item Unit S260 / 1500 S260 / 2000 S300 / 2000 S300 / 2500
    Screw L/D Ration L/D 25 25 25 25
    Screw Diameter mm 75 80 80 90
    Injection pressure kgf/cm² 1280 1125 1400 1106
    Injection volume cm³ 1414 1608 1810 2290
    Shot weight (PET) g 1654 1882 2117 2680
    Shot weight oz 58 66 75 95
    Clamping force T 260 260 300 300
    Clamping Stroke mm 540 540 585 585
    Max/Min Thickness of mold mm 200 - 580 200 - 580 300 - 720 300 - 720
    Space Between Tie Bars (W*H) mm 570 * 570 570 * 570 660 * 760 660 * 760
    Ejector Stroke mm 150 150 180 180
    Ejector Force T 8 8 20 20
    NO.of Ejector Pins pcs 5 5 5 5
    Max system pressure kg/cm² 160 160 160 160
    Motor Power kw 36 36 44 44
    Heater Input Capacity kw 32 36 36 44
    Machine Size (L*W*H) cm 700 * 200 * 220 7000 * 160 * 220 800 * 200 * 220 800 * 210 * 220
    Machine Weight T 12 12 14 14
    Notice: Demark reserve the rights to make any product improvement or specification change without prior notice.

    * Demark reserves the right to make changes to the products and specifications are subject to change without notice.
