    • iPET Series PET Preform Injection Molding System

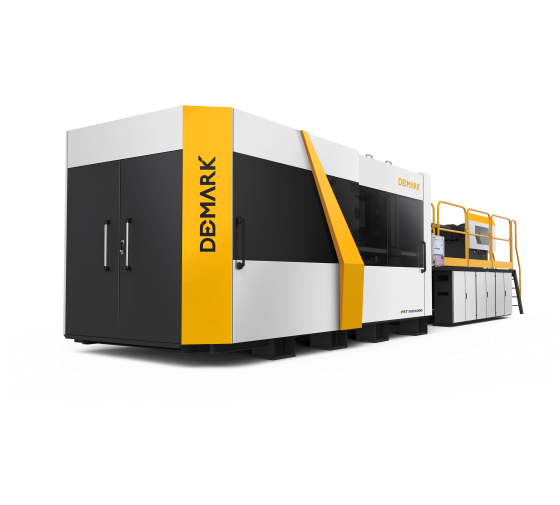

    iPET PET Preform Injection Molding System

    ● For 72, 96 cavities PET preform mould, Cycle: 8S/14g/72cav.
    ● Two-Step Injection, With 3 Station Cooling Robot
    ● With 3 Station Cooling Robot, Electric Plasticization

    Send inquiry
    Description Technical parameters Video
    1. 1  Independent electric screw drive brings you both melting and energy efficiency
    2. 2  BECKHOFF centralized control system special designed for  PET production.
    3. 3  Three station post cooling robot makes the preform perfectly cooled with better cycle time.
    4. 4  Advanced servo valve control technology makes the highly dynamic injection possible.
    5. 5  Up to 5 sets of high efficient accumulator ensure the stability of high capacity injection .
    6. 6  Synchronous material melting,plasticization and injection at the same.
    7. 7  Special design for PET preform mould,which ensure the fast clamping movement and uniformly forced of the mould.

    Model UNIT iPET300/3500 iPET300/5000 iPET400/5000 iPET400/6000 iPET500/7000
    INJECTION UNIT Screw L/D Ratio L/D 25 25 25 25 25
    Screw Diameter MM 100 120 120 130 140
    Shot Weight(PET) G 3500 5000 5000 6200 7200
    Plasticizing Rate (PET) G/S 200 300 300 380 470
    CLAMPING UNIT Clamping Force T 300 300 400 400 500
    Clamping Stroke MM 585 585 670 500 550
    Max/Min Thickness of Mould MM 300~720 300~720 300~820 500~1300 550~1350
    Space Between Tie Bars(WxH) MM 660x760 660x760 845x845 920x920 1020x1120
    Ejector  Stroke MM 180 180 180 200 200
    Ejector  Force T 20 20 28 41 51
    NO.of Ejector Pins PCS 9 9 13 10 10
    MOULD Cavity(Max) PCS 72 72 96 128 144
    Type of Mould Needle Valve Of Non-cutting PET Preform Mold
    POWER UNIT Pump Motor Power KW 81+82 81+82 81+82 110+130 130+130
    Robot Power KW 36 36 43 108 108
    Heater Input Capacity KW 78 86 86 130 130
    Mould Heater Capacity KW 55 55 68 90 90
    ROBOT Manipulator Cavity 216 216 288 384 432
    Cooling Form Cavity 216 216 288 384 432
    Size(LxWxH) CM 263X157X230 263X157X230 281X160X250 315X260X273 315X260X273
    OTHER Power supply (3-phase AC) V/HZ 380/50 380/50 380/50 380/50 380/50
    KW 332 332 360 568 568
    Chilling Water ℃ 5~10 5~10 5~10 7~9 7~9
    Mpa 0.8 0.8 0.8 0.8 0.8
    L/Min 900 900 1200 1200 1200
    Cooling Water ℃ <25 <25 <25 ＜25 ＜25
    Mpa 0.3 0.3 0.3 0.3 0.3
    L/Min 300 300 300 300 300
    Compressed Air Mpa 0.7~0.9 0.7~0.9 0.7~0.9 0.7~0.9 0.7~0.9
    L/Min 800 800 1200 1200 1200
    Machine Size(LxWxH) CM 930X180X250 990X180X250 1090X205X260 1180x250X270 1240X270X300
    Machine Weight T 26 28 34 39 44
    Model UNIT iPET300/3500 iPET300/5000 iPET400/5000 iPET400/6000 iPET500/7000
    INJECTION UNIT Screw L/D Ratio L/D 25 25 25 25 25
    Screw Diameter MM 100 120 120 130 140
    Shot Weight(PET) G 3500 5000 5000 6200 7200
    Plasticizing Rate (PET) G/S 200 300 300 380 470
    CLAMPING UNIT Clamping Force T 300 300 400 400 500
    Clamping Stroke MM 585 585 670 500 550
    Max/Min Thickness of Mould MM 300~720 300~720 300~820 500~1300 550~1350
    Space Between Tie Bars(WxH) MM 660x760 660x760 845x845 920x920 1020x1120
    Ejector  Stroke MM 180 180 180 200 200
    Ejector  Force T 20 20 28 41 51
    NO.of Ejector Pins PCS 9 9 13 10 10
    MOULD Cavity(Max) PCS 72 72 96 128 144
    Type of Mould Needle Valve Of Non-cutting PET Preform Mold
    POWER UNIT Pump Motor Power KW 81+82 81+82 81+82 110+130 130+130
    Robot Power KW 36 36 43 108 108
    Heater Input Capacity KW 78 86 86 130 130
    Mould Heater Capacity KW 55 55 68 90 90
    ROBOT Manipulator Cavity 216 216 288 384 432
    Cooling Form Cavity 216 216 288 384 432
    Size(LxWxH) CM 263X157X230 263X157X230 281X160X250 315X260X273 315X260X273
    OTHER Power supply (3-phase AC) V/HZ 380/50 380/50 380/50 380/50 380/50
    KW 332 332 360 568 568
    Chilling Water ℃ 5~10 5~10 5~10 7~9 7~9
    Mpa 0.8 0.8 0.8 0.8 0.8
    L/Min 900 900 1200 1200 1200
    Cooling Water ℃ <25 <25 <25 ＜25 ＜25
    Mpa 0.3 0.3 0.3 0.3 0.3
    L/Min 300 300 300 300 300
    Compressed Air Mpa 0.7~0.9 0.7~0.9 0.7~0.9 0.7~0.9 0.7~0.9
    L/Min 800 800 1200 1200 1200
    Machine Size(LxWxH) CM 930X180X250 990X180X250 1090X205X260 1180x250X270 1240X270X300
    Machine Weight T 26 28 34 39 44

    * Demark reserves the right to make changes to the products and specifications are subject to change without notice.
